SPECIALIST IN
CORTEN STEEL
CORTEN THE ECOLOGIC STEEL
FABRICATION AND DISTRIBUTION OF CORTEN TUBE AND SHEET
- Corten steel manufacturing
- Fabrication de l’acier corten
Export: FRANCE - MAROC - ENGLAND - ESLOVAQUIA - BELGIUM - PORTUGAL
CORTEN STEEL
METALCORTEN® - REFERENCE AND QUALITY IN CORTEN STEEL
In stock American grades CORTEN A AND CORTEN B ( COR-TEN® ), In stock European grades in all thicknesses in customized versions S355J2WP / S355JOWP/S355J2W+N / S355J2WCorten B / S355J2W+M / S355J2W+AR / C.L. HC315WP / L.F.HC355WP/ DECAPADA S355J2W / in versions with or without calamine consult which of them is the most suitable for each procedure and each site of action.
METALCORTEN® is the only corten steel brand that guarantees in stock 10 different qualities certifying excellence in sustainability and durability of ecological corten steel.

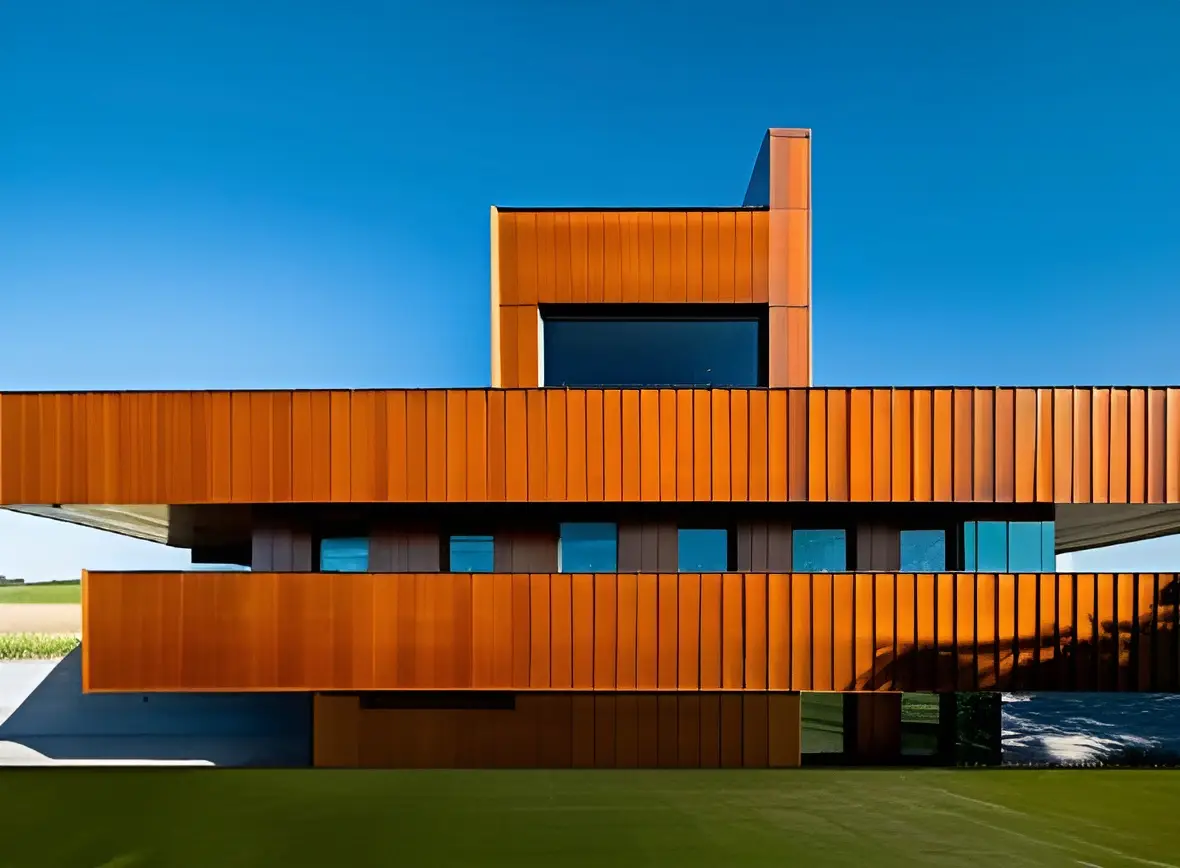

Our quality is recognized and recommended by the best architectural firms in Europe and around the world to guarantee any work with the highest standards of steel.
If you want to guarantee 100% of your works in Corten steel, ask your original certified METALCORTEN® supplier for a 100% guarantee.

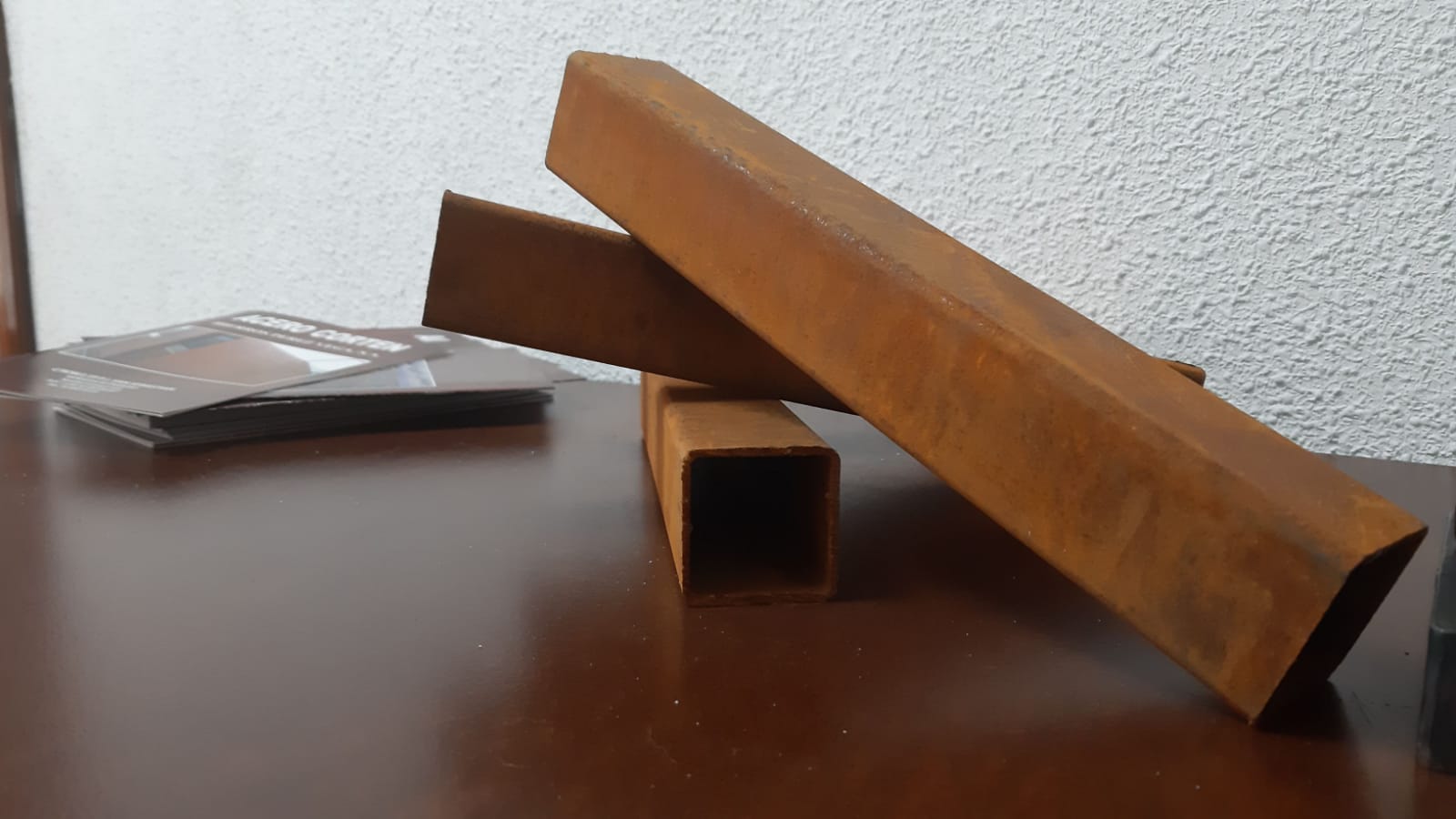

HISTORY
In the history of corten steel we have data from 1822 which states that adding copper to normal steel the resistance to corrosión was better, but it was really since the 20th century when this steel started to be investigated. In 1933, Kendal and Henderson from USS Stell started comercializing this steel under the name of Cor-ten, adding 0,03% of Copper to the chemical composition.
In later years the number of tests increased until incorporating Si (silicon), P (phosphorus) and Cr (chromium) to the formula and two versions of the corten steel were developed: One with nickel called Corten A and without nickel called corten B. In EEUU test were made about the oxidation in different atmospheres. The ASTM comittee exposed different steels with copper content adn they saw that the self-skating steel could be used wihtout paint and galvanization for bridge works where a durable steel with at least 100 years of durability was needed.
CHARACTERISTICS
CORTEN SHEET IN COIL
In order to give a good service of sheet cut to size, we have available a continious program and a large amount of coils on stock.
The qualities are the same as the formats in 1, and 2mm in HC315WP INDATEN and in S355J2WP in black sheet.
| Quality: BLACK HC315WP MEASURES (mm) |
Quality: BLACK S355J2WP MEASURES (mm) |
|---|---|
| 1000X1,5 ( INDATEN HC315WP ) | 1000X2,0 ( BLACK S355J2WP) |
| 1500X1,5 ( INDATEN HC315WP) | 1500X2,0 ( BLACK S355J2WP) |
| 1000X2,0 ( INDATEN HC315WP) | 1000X2,5 ( BLACK S355J2WP) |
| 1250X2,0 ( INDATEN HC315WP) | 1500X2,5 ( BLACK S355J2WP) |
| 1500X2,0 ( INDATEN HC315WP) | 1000X3,0 ( BLACK S355J2WP) |
| 1500X3,0 ( BLACK S355J2WP) | |
| 1500X4,0 ( BLACK S355J2WP) | |
| 1500X5,0 ( BLACK S355J2WP) | |
| 1500X6,0 ( BLACK S355J2WP) | |
| 1500X8,0 ( BLACK S355J2WP) | |
| 1500X10,0 ( BLACK S355J2WP) | |
| 1500X15,0 ( BLACK S355J2WP) | |
| 1500X20,0 ( BLACK S355J2WP) |
CORTEN SHEET IN FORMAT
Qualities in stock: S355JOWP / S355J2WP / S355J2W+N in format and coil from 2 mm to 10mm / S355J2W+N in INDUSTRIAL SHEET from 15 to 50 mm / S355J2W ( Corten B ) / HC315WP Cold Lam. / CORTEN ORIGINAL@ COR-TEN /
The corten sheet of METALCORTEN is fabricated in the best and most modern European factories with recicled strap in electro-intensive production under specifications and chemical composition determined by our I+D team, specialized in tube fabrication and especially with the objetive of highlighting the characteristic orange color of our corten sheet. This colour and texture is unique and different from any other brand. We offer qualities COR-TEN A @USS STEEL with original patent, quality S355J2WP (maximized in copper) and HC 315 INDATEN in thickness from 1.5 to 50mm. Eveything on stock. We can schedule and fabricate any other customized need.
We can reach any possible thickness from 1.5 to 20-50-100mm thank to our stock of thousands of tones of commercial formats and coils and also thank to our cut lane and customized plasma cutting, which let us cover any requirement our customer needs.
| Length(mm) | Width(mm) | Thickness(mm) | Qualities |
|---|---|---|---|
| 2000 | 1000 | 1.5/2 | COLD LAM. (without calamine) INDATEN_HC315WP-A-M-O |
| 3000 | 1500 | 1.5/2/3 | COLD LAM. (without calamine) INDATEN_HC315WP-A-M-O |
| 2500 | 1250 | 2/3 | BLACK S355J2WP |
| 3000 | 1500 | 3 | PICKLED (without calamine) S355J2W |
| 2000 | 1000 | 2/3/4/5/6/8/10 | BLACK S355J2WP / CORTEN ORIGINAL@ COR-TEN / |
| 3000 | 1500 | 2/3/4/5/6/8/10/15/20 | BLACK S355J2WP / ORIGINAL@ COR-TEN / S355J2W+N / S355J2W / S355J0W |
| 6000 | 1500 | 8/10/15/20 | BLACK S355J2WP / S355J2W+N |
| 6000 | 2000 | 15/20/25/30/40/50 | BLACK S355J2W+N |

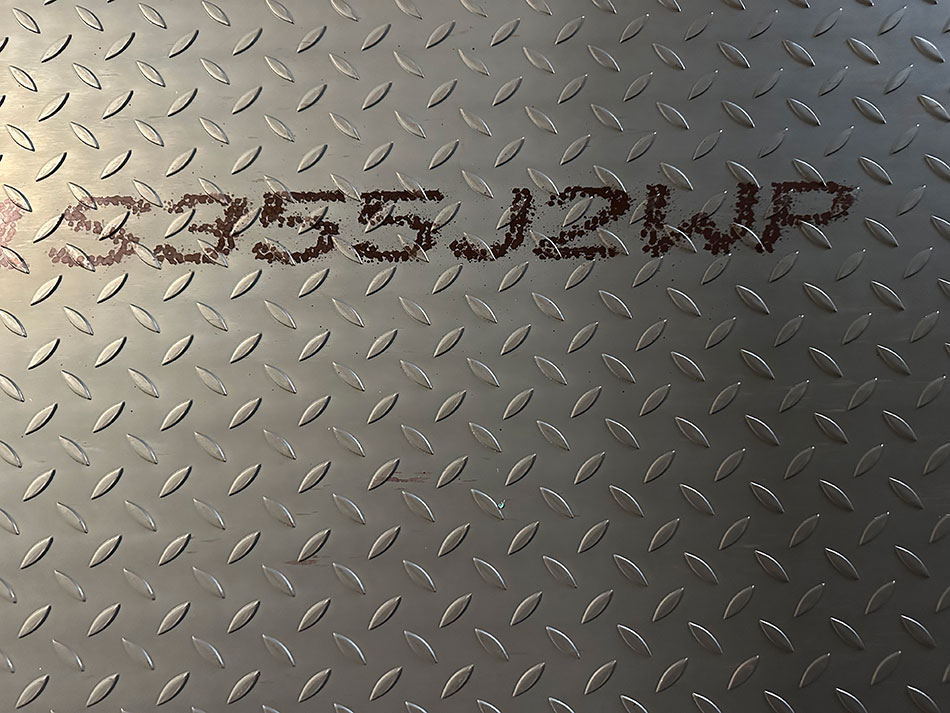

CORTEN TEAR PLATE
NEW 2024, For works with anti-slip sheets for exteriors, manufactured in
coil width 1335 thickness 3/5 giving a step forward in integral and
ecological solutions in corten steel. Perfect for steps, stairs, facades with
accentuated finish, anti-slip and multifunctional walkways.
QUALITY S355J2WP —-STOCK IN REEL 1335X 3,5/5,5
STOCK IN FORMAT: 2000X1335 AND 3000X1335 ON 3,5/5,5

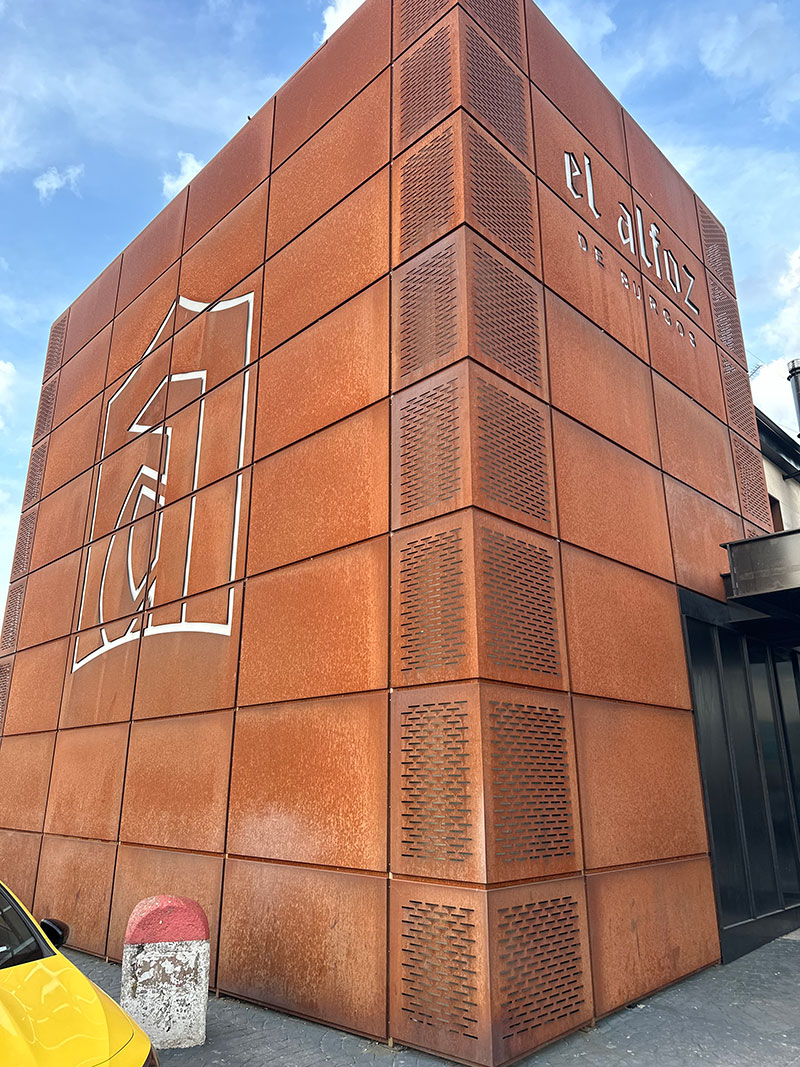

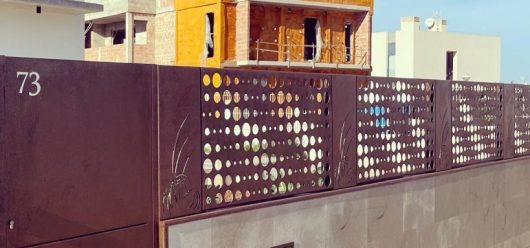

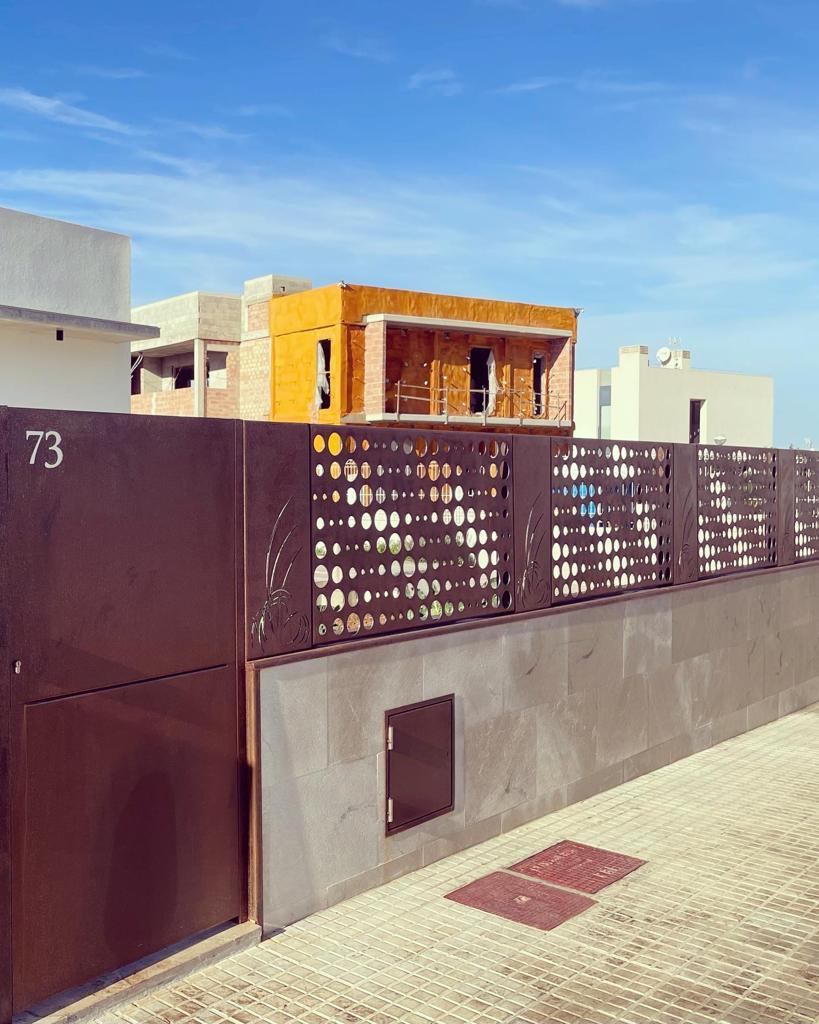

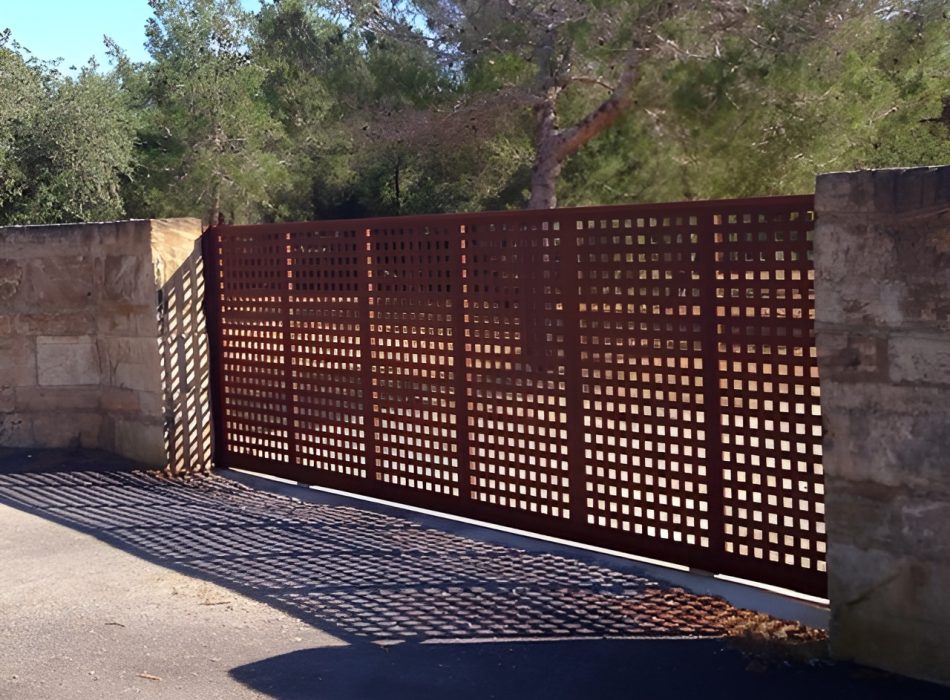

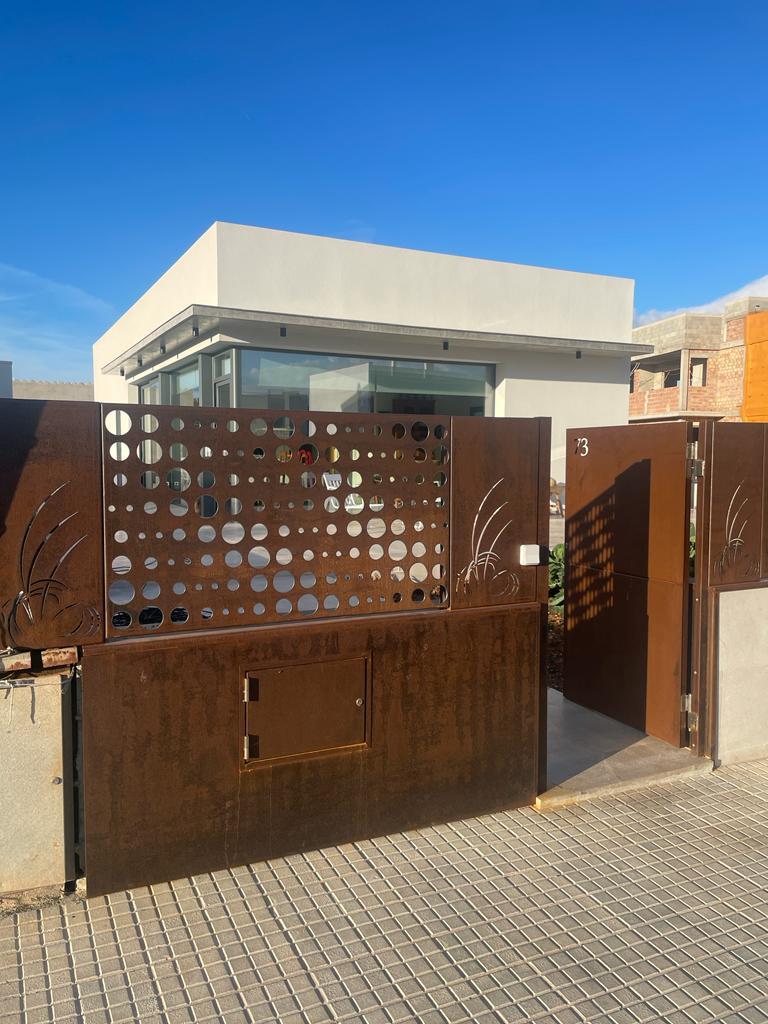

PERFORATED SHEET
Quality: S355J2WP / HC315wP cold rolled
2000×1000 x1.5-2.0 in stock
Square hole
T20 C20
T30 C30
T40 C40
Round hole in various sizes (check stock)
CORTEN TUBE
Since 2016 we start the fabrication of structural corten tube in order to asnwer the demand of any type of edification with the same composition of our corten sheet, so we can make sure that it does not pollute the sheet we work with in the same edifications. Quality S355J2WP.
Currently we have a monthly fabrication program of every measure on stock from 2mm to 3mm (all our tubes have a thickness of tolerance -0 + 0.2. We always guarantee the nominal thickness or more) so we can fabricate measures and thicknesses out of our catalog.
We have available a wide range of corten tube (length 6000mm) on permanent stock. For any other measure, please do not hesitate to contact us.
QUALITY: S-355-J2HWP
| Square tube | Rectangular TubeTubo rectangular | Round tube |
|---|---|---|
| 20X20X2* | 40X20X2* | Ø 20X2* |
| 30X30X2* | 50X30X2* | Ø 30X2* |
| 40X40X2* | 60X30X3* | Ø 40X2* |
| 40X40X3* | 60X40X2* | Ø 50X2* |
| 50X50X2* | 60X40X3* | Ø 60,3X3* |
| 50X50X3* | 80X40X2* | Ø 88,9X3* |
| 60X60X2* | 80X40X3* | Ø 100X3* |
| 60X60X3* | 100X50X2* | Ø 168X3* |
| 80X80X2* | 120X60X3* | |
| 80x80x3* | 140X80X3 C | |
| 100X100X3* | ||
| 120X120X3* |
Corten steel plate hot rolled in quality S355J2W + M.
On stock in length 6100mm
Corten steel plate cut from sheet (S355J2WP) in plasma is the asnwer to the variety of plates that are not in limited production and there is not laminade due to the minimum quantity of fabrication.
The cut of sheet in formats 3000×1500 and 6000×1500 let us have a large amount of different measures on stock and also being able to cut special measures our customer may ask for.
| LAMINATED PLATES Quality: S355J2W + M MEASURES on STOCK: |
CORTEN PLATES VUT FROM SHEET S355J2WP MEASURES ON STOCK a 2.980 mm y a 5.980 mm: |
|
|---|---|---|
| 40X8 a 6.000 mm S355J2W + M | 40X10 S355J2WP | 150X8 S355J2WP |
| 50X10 a 6.000 mm S355J2W + M | 50X8 S355J2WP | 200X8 S355J2WP |
| 100X10 a 6.000 mm S355J2W + M | 60X8 S355J2WP | 250X8 S355J2WP |
| 150X10 a 6.000 mm S355J2W + M | 60X10 S355J2WP | 250X10 S355J2WP |
| 200X10 a 6.000 mm S355J2W + M | 80X8 S355J2WP | 300X10 S355J2WP |
| 80X10 S355J2WP | 500×8 S355J2WP | |
| 100X8 S355J2WP | 500×10 S355J2WP | |
| 120X10 S355J2WP | ||
ASK US FOR ANY OTHER MASURE
Custom manufacturing of any SHEET AND PLATE cut to size

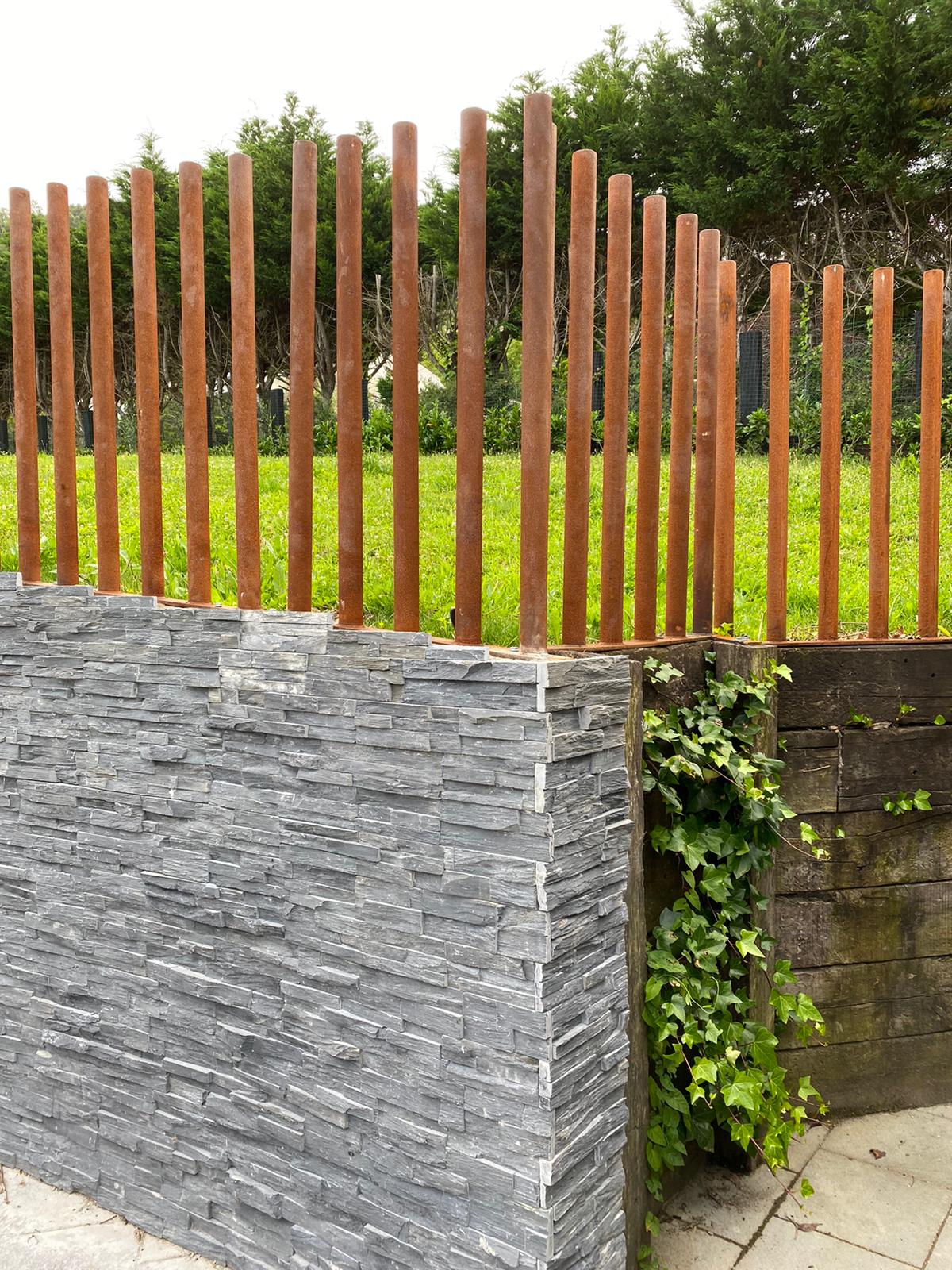

CORTEN ROUND BAR (S355J2W+AR)

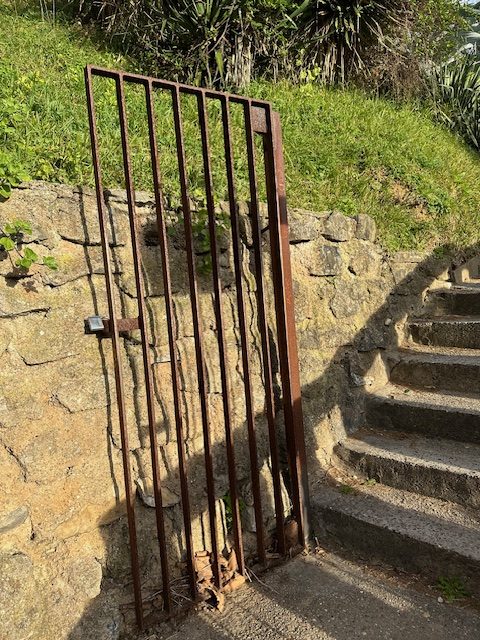

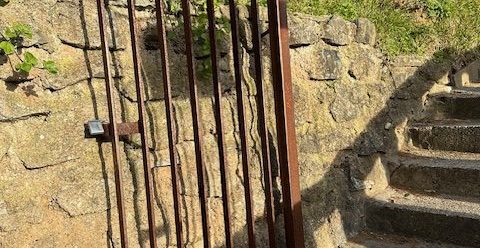

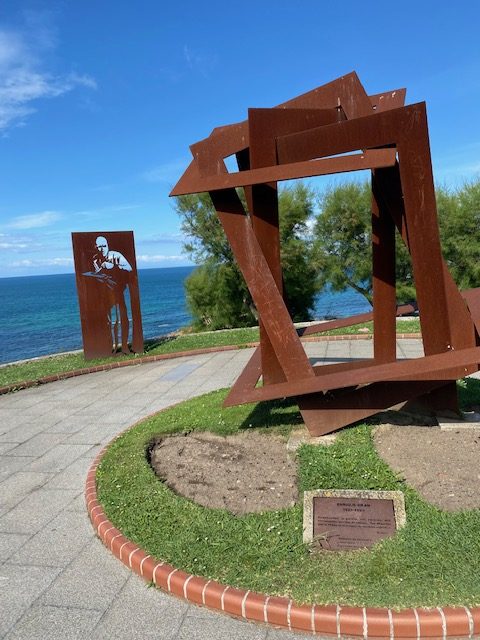

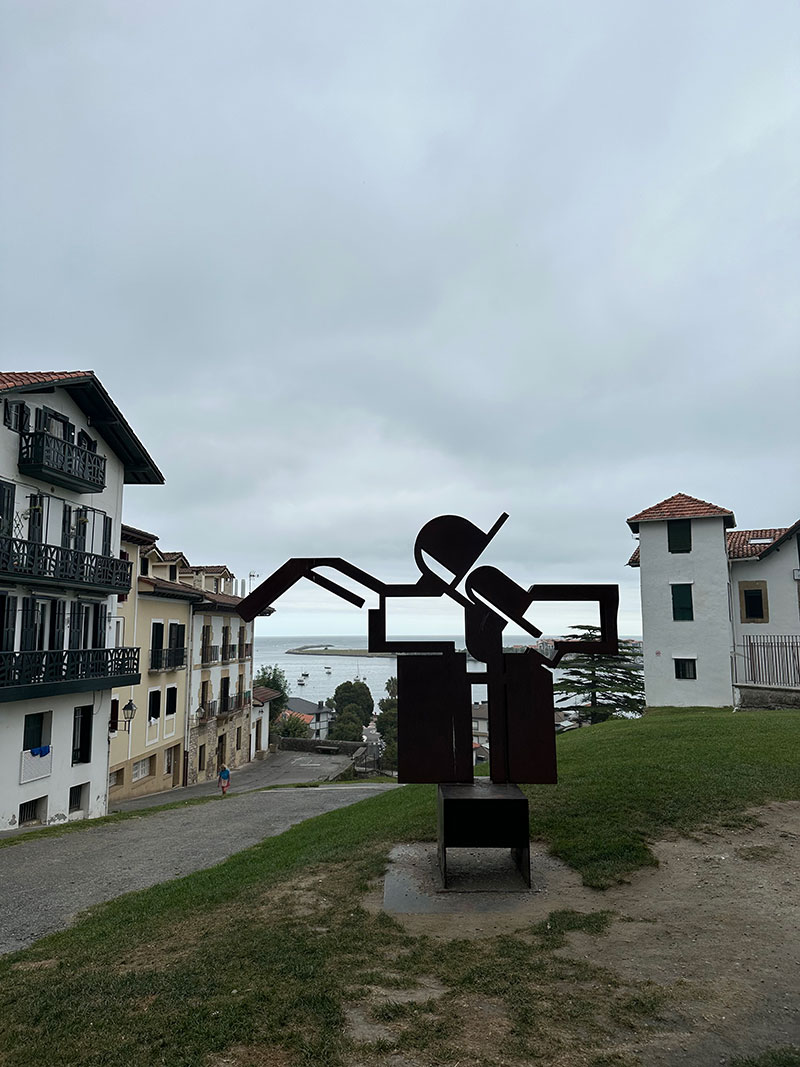

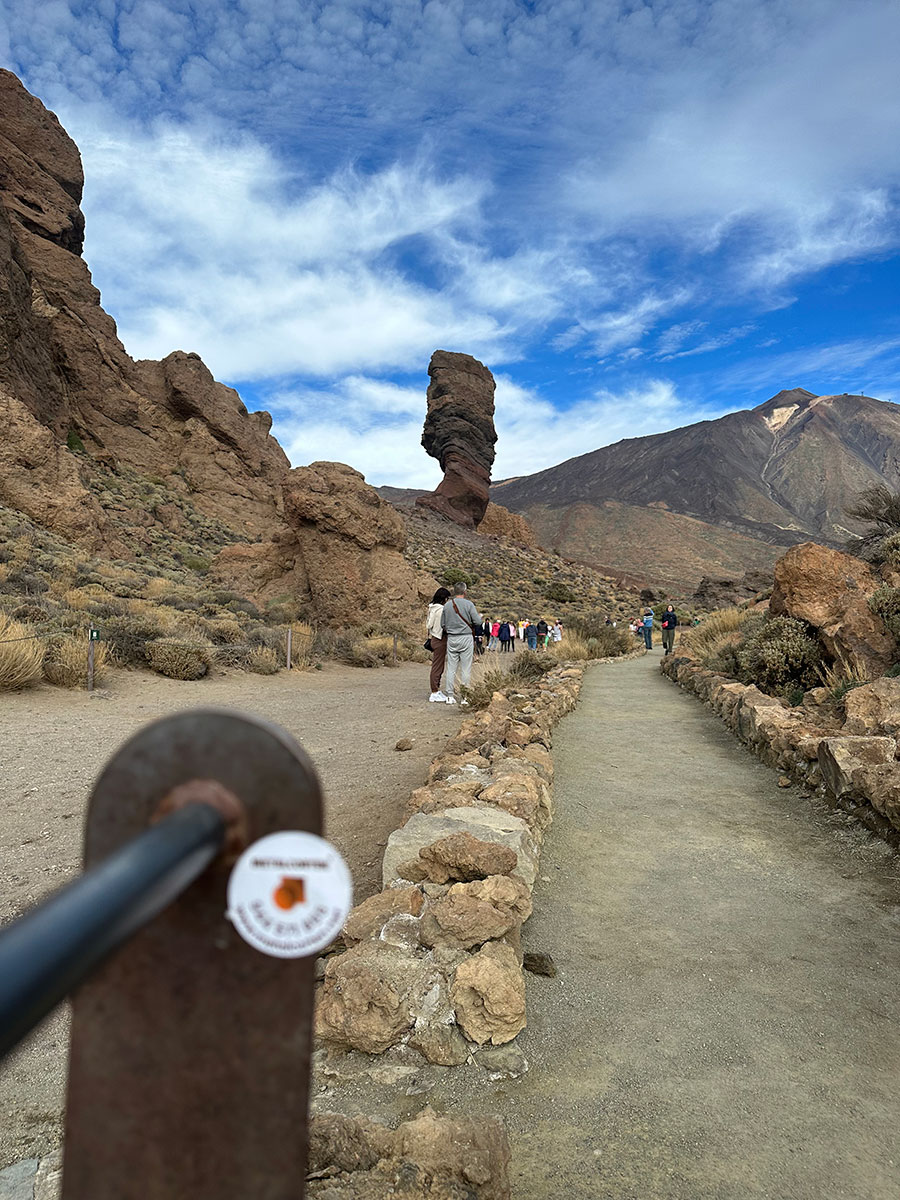

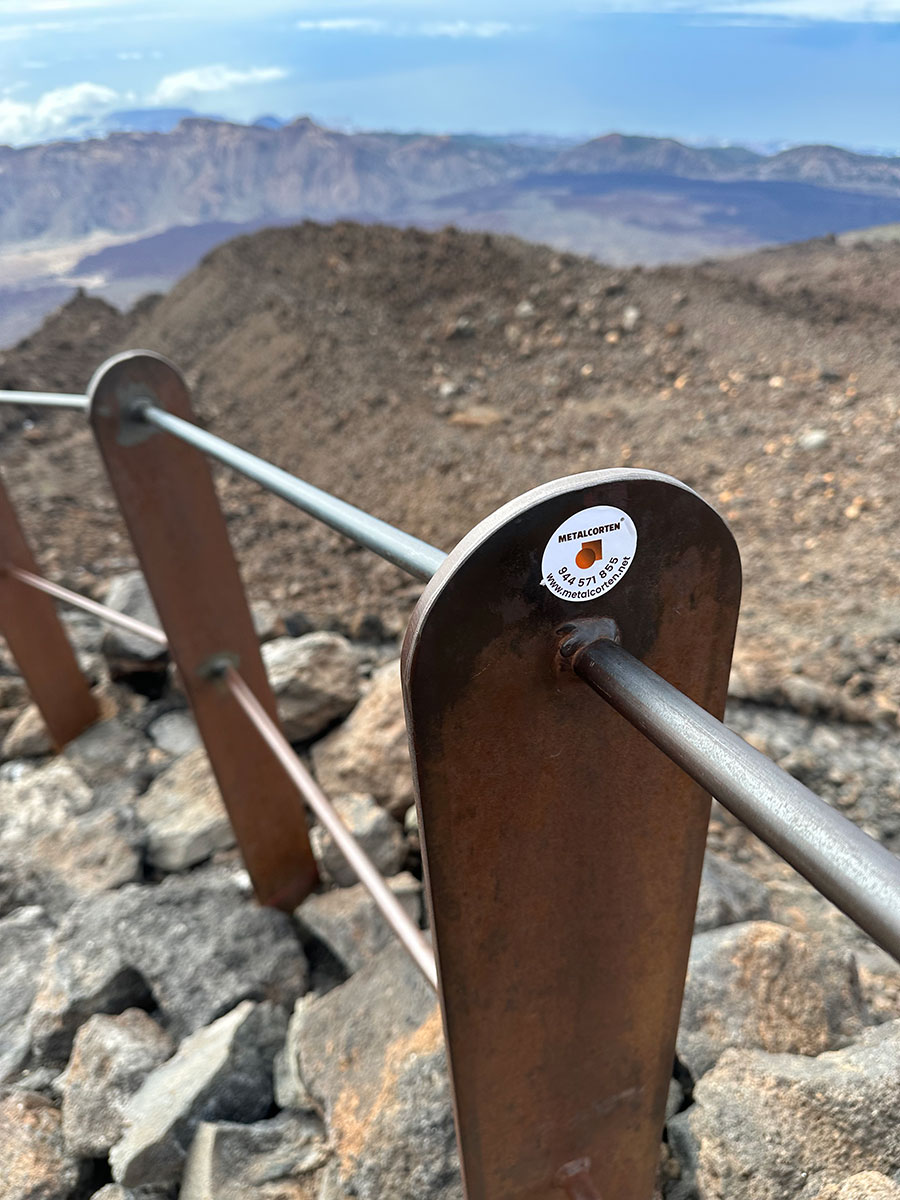

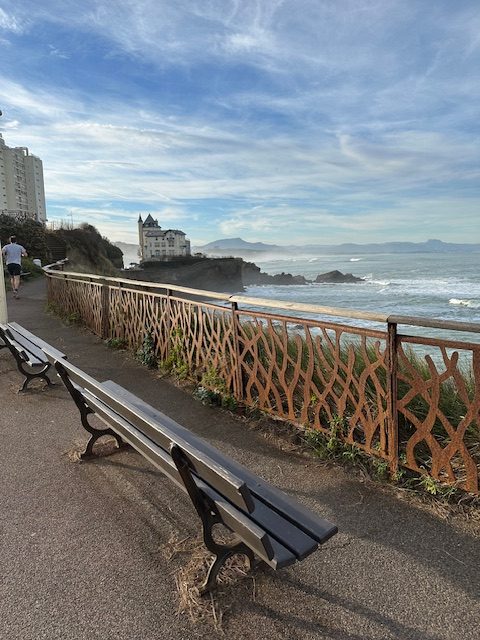

In response to the demand for the construction of diverse railings, decorations, escultures and estructures we have new corten round bar of 12mm and 16mm on stock.
| Quality: S355J2W+AR MEASURES (mm) |
|---|
| Smooth round from 10 at length 6000 mm. on stock |
| Smooth round from 12 at length 6000 mm. on stock |
| Smooth round from 16 at length 6000 mm. on stock |
| Smooth round from 20 at length 6000 mm. on stock |
ANGLE PROFILES (S355J2W+M)
Angles of comercial measures on stock for conventional structures, civil and industrial works.
CORTEN angles (S355J2W+M)
| MEASURES ON STOCK |
|---|
| 30X30X3 a 6,1 mtrs. |
| 40x40x4 a 6,1 mtrs. |
| 50x50x5 a 6,1 mtrs. |
| 100x100x10 a 6,1 mtrs. |
CATALOGS CORTEN STEEL
METALCORTEN ROUGHING ACCESSORY
ELECTRODES FOR CORTEN STEEL

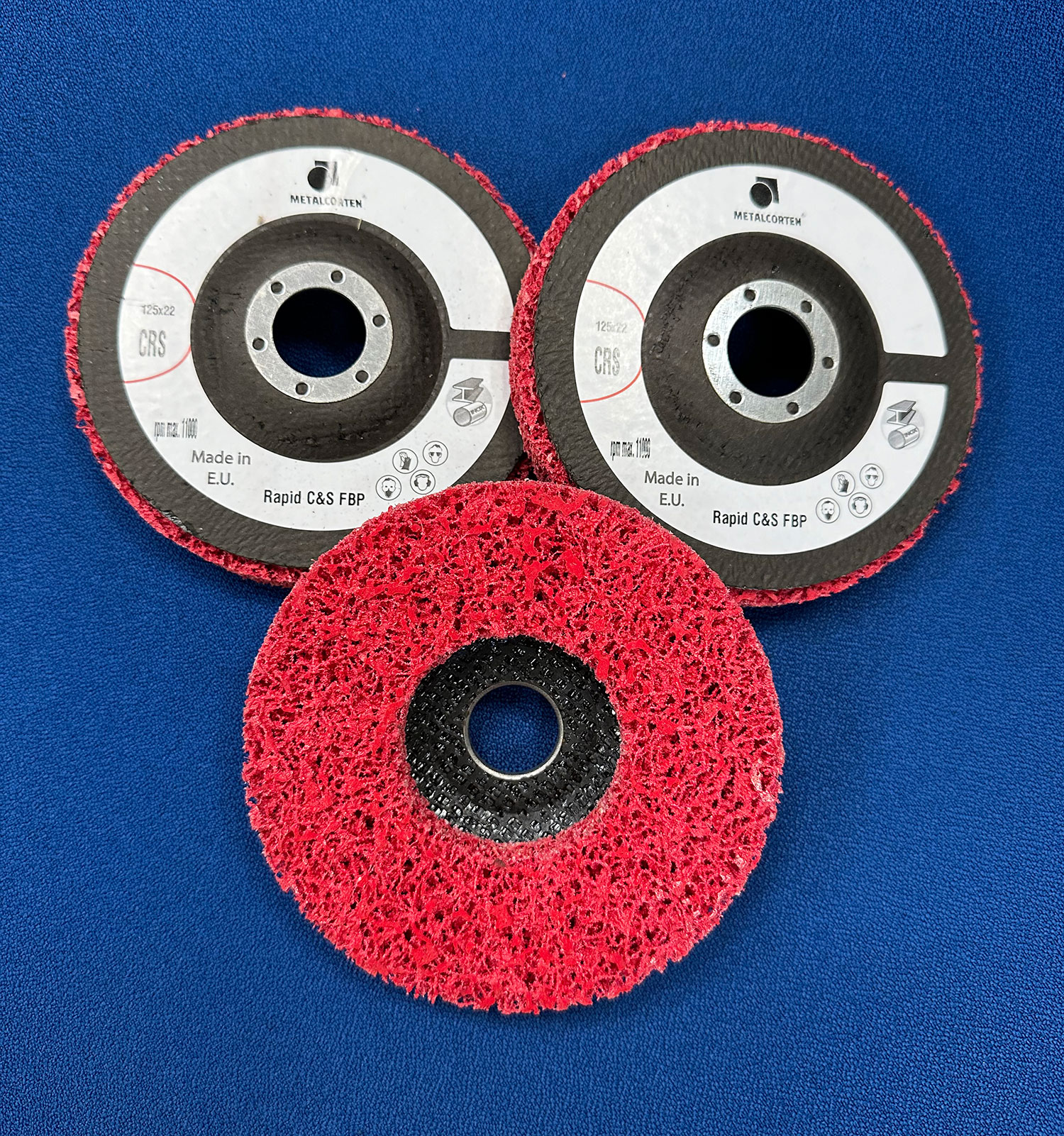

Our R&D department has developed special discs which composition is a polyamide mixture for the removal of calamine from the steel. Our discs completely clean the calamine of black carbon steel, preserving 100% of the base steel. This way, the mechanical characteristics of Corten steel prevail intact and with the perfect finish for uniform oxidation.
For good handling by professionals, we manufacture it in 125mm diameter. In this way the weight of the radial machine does not affect working time.
To purchase, contact our commercial department.
ACCESORIES AND RUST ACTIVATORS
ELECTRODES FOR CORTEN STEEL
The special electrodes for corten is an electrode with a humidity-resistant coating, LMA alloyed with Ni and Cu, which contributes to a steel with a really good resistance to the corrosion by seawater and combustion gases. It is appropiate for the welding of weather-resistant steels (COR-TEN) and for shipbuilding. This electrode can be used for all types of joints and welding positions.
METALCORTEN RUST ACTIVATOR
CHARACTERISTICS
METALCORTEN RUST ACTIVATOR is an oxidizing solution of water-soluble mineral salts to accelerate the rust process on iron and steel-made surfaces such as the corten steel.
SURFACE PREPARATION
The surface must be without calamine. Hot-rolled iron, black iron and cast iron must be blasted to remove the calamine present on the surface. If the surface has grease, it must be degreased.
APLICATION
Let the product act and repeat the aplication. Although the rust starts instantly, we recommend to let the product act during at least 3 days.

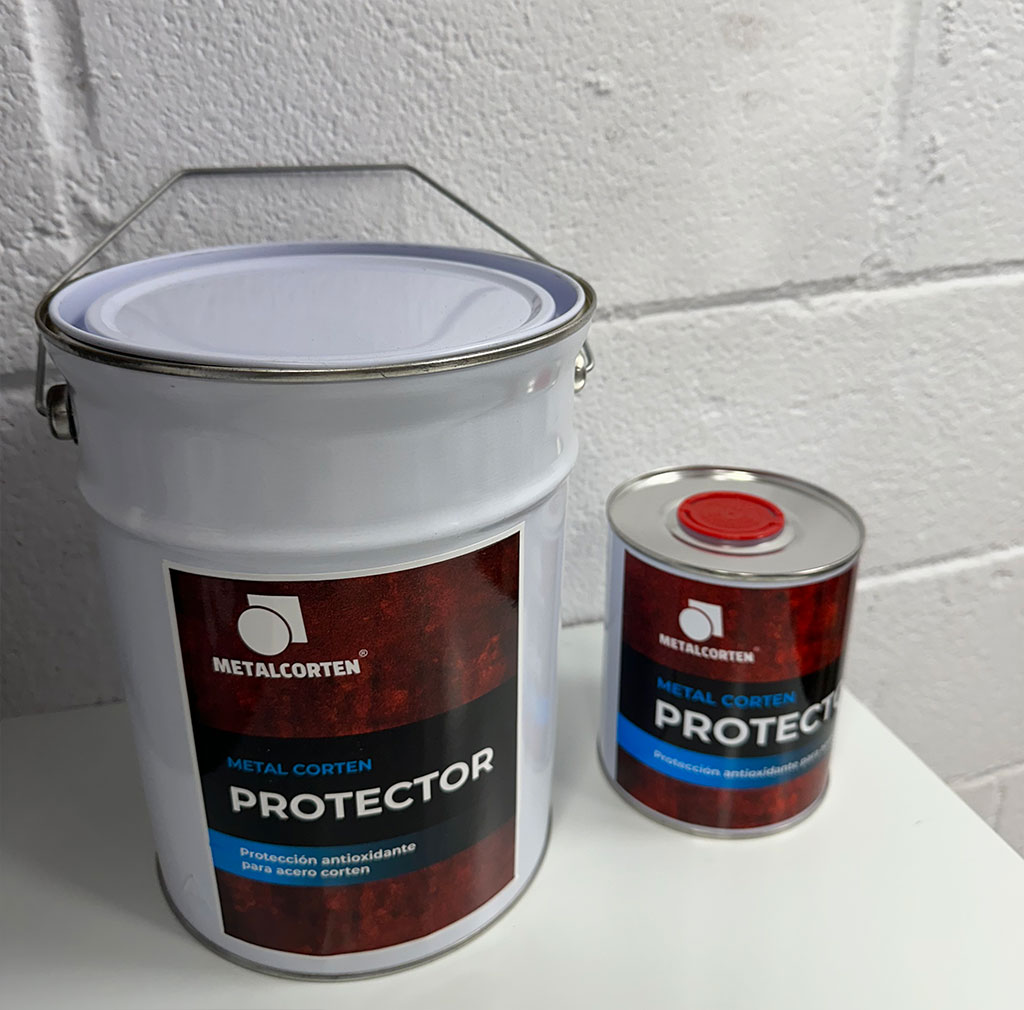

METALCORTEN PROTECTOR
It is a trasnparent sealer that proctects the steel and surfaces from the paints and effect range. Effect sealant forms a film on high acidity surfaces, prevents subsequent oxidation and prevents the color from yellowing. Chemically protects and minimizes subsequent oxidation, creating a self-reticular barrier to resist weathering. It does not require dilution with water when applied directly to metals. When applied over iron, copper or bronze paints, dilutes only the 1st layer in equal parts with mineral water. It does not require the subsequent application of any finished varnish. Note: The Effect Sealant product is sensitive to moisture during the drying process. When working outdoors, do not apply the product if there is a risk of rain during the 3 days following application.
TRANSPORT SERVICES
We guarantee national service to the whole peninsula, Canary Islands, Balearic Islands, France, Italy, Portugal and Nordic countries with our own lorries and with transport agencies with weekly pre-established routes so that our customers are assured of a fast and efficient supply.
ADDITIONAL SERVICES

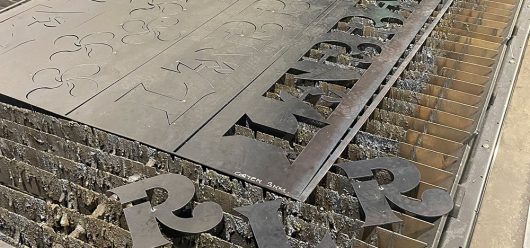

Hd Plasma Cut
Corte de chapa acero corten a medida según planos.
Disponemos de ingeniería de dibujo para dar forma a cualquier idea en chapa en acero corten o cualquier acero disponible.
Types of HD plasma oxyfuel work:

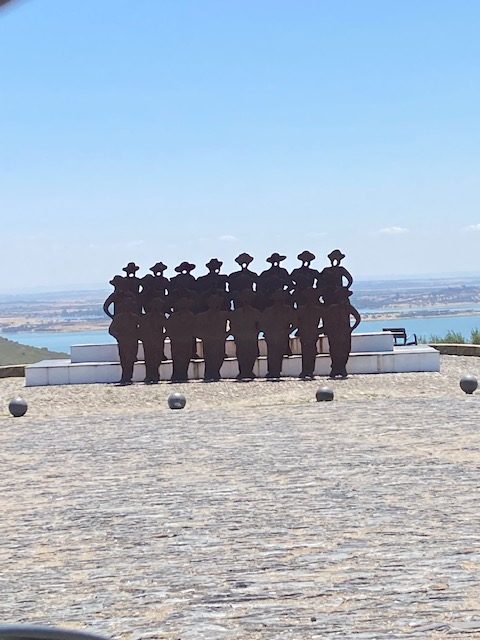

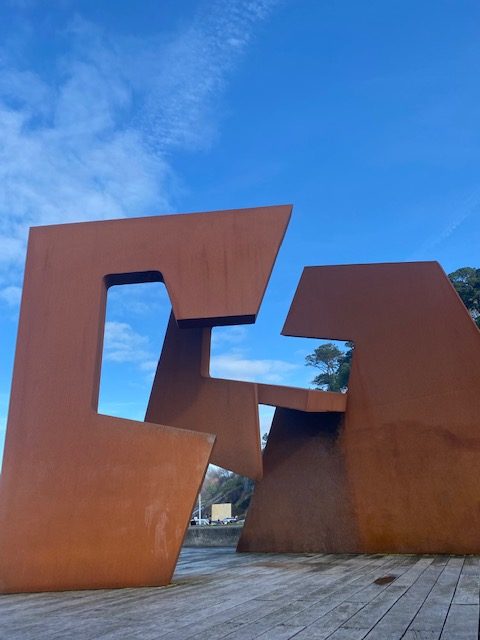

Advertising posters, signs, monoliths, custom sculptures, letters, etc…
Manufacturing of high-quality, flexible products adapted to your needs:
▸ Plates ▸ Metal constructions
▸ Anchors ▸ Automotive and machine tools
▸ Bevels ▸ Aeronautical industry
▸ Stiffeners ▸ Wind industry
▸ Off-plan parts ▸ Electromechanical industry

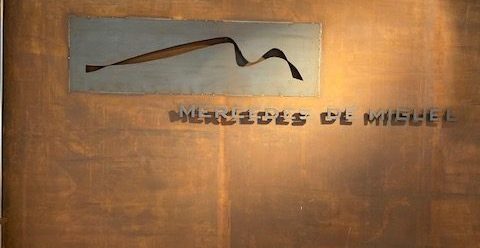

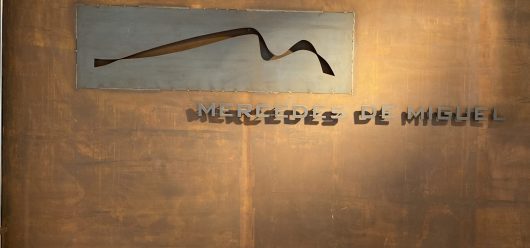

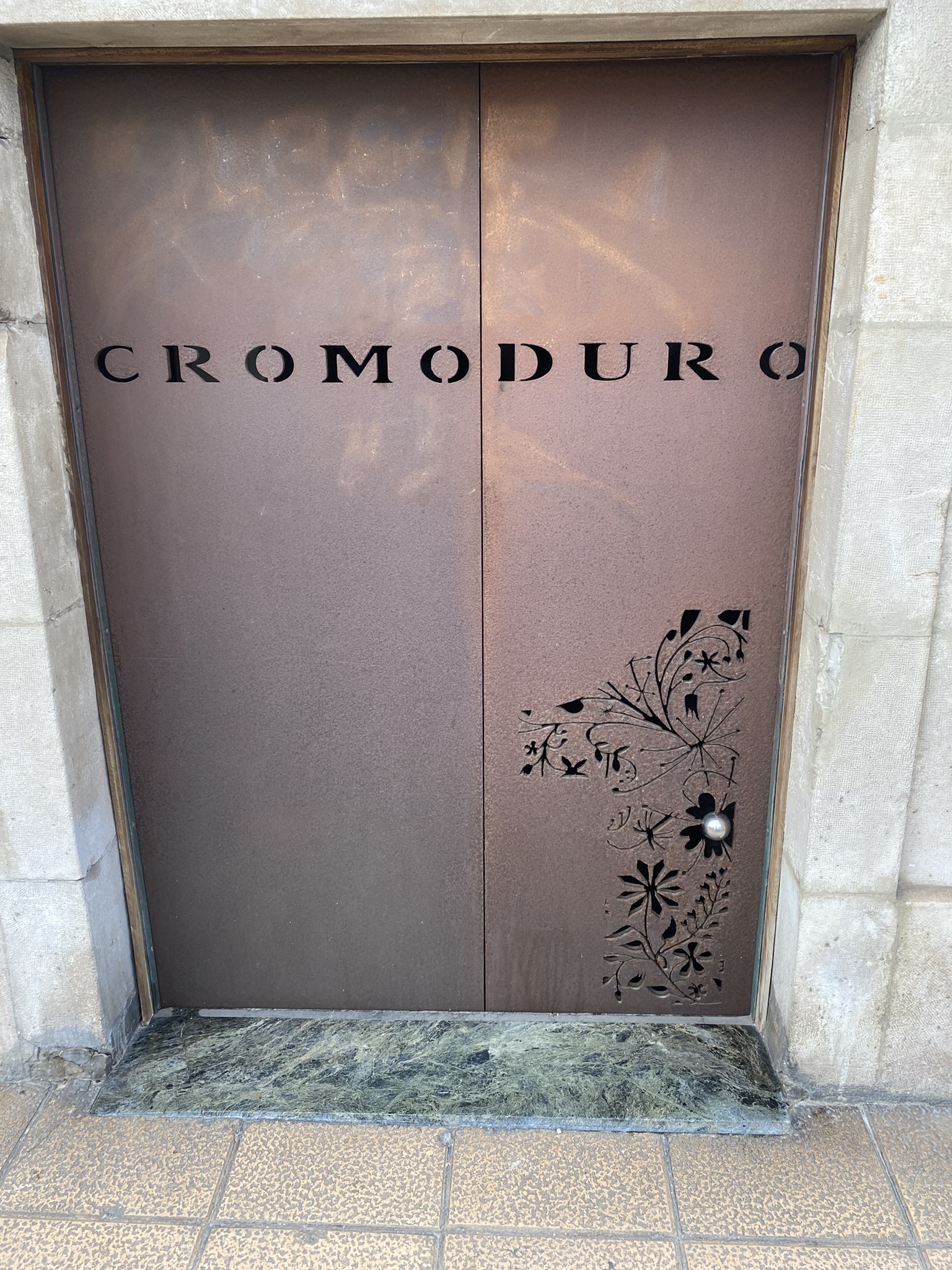

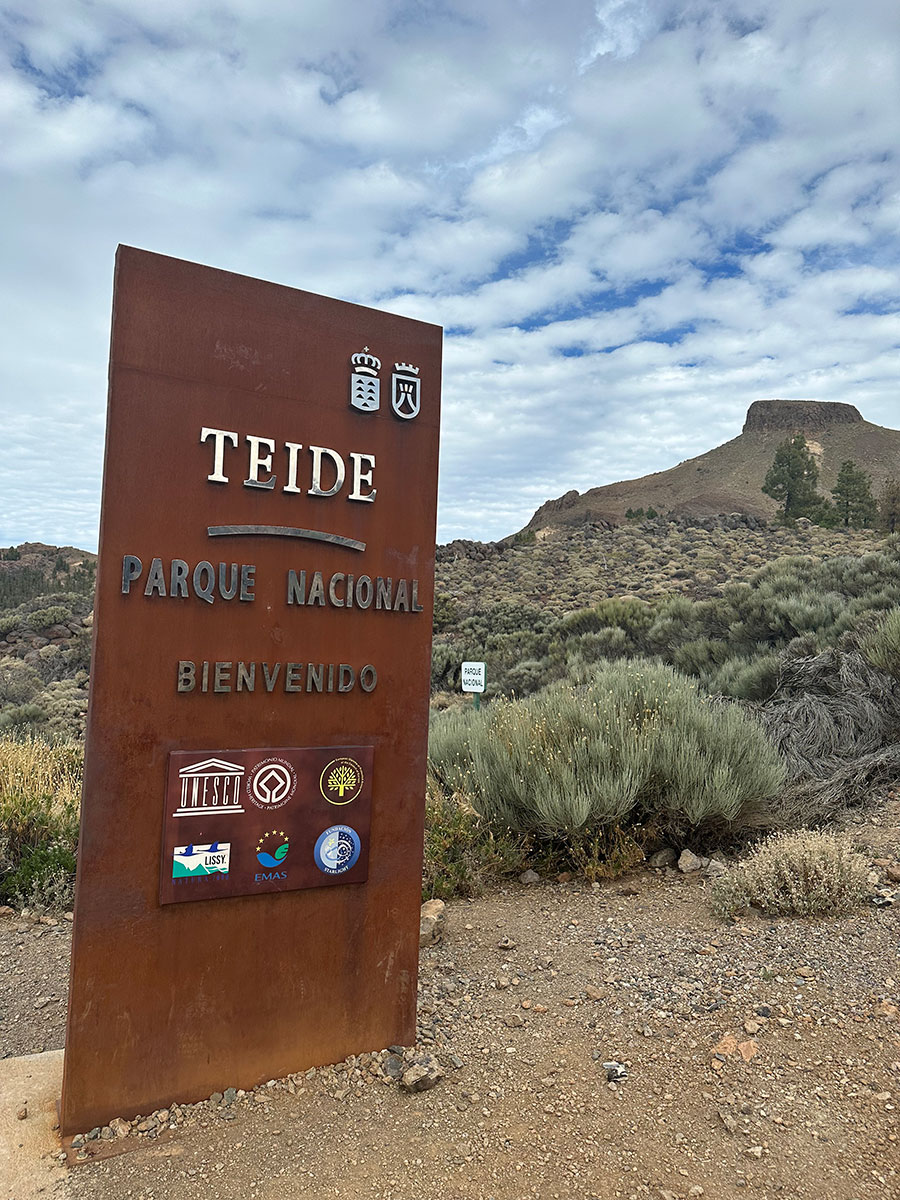

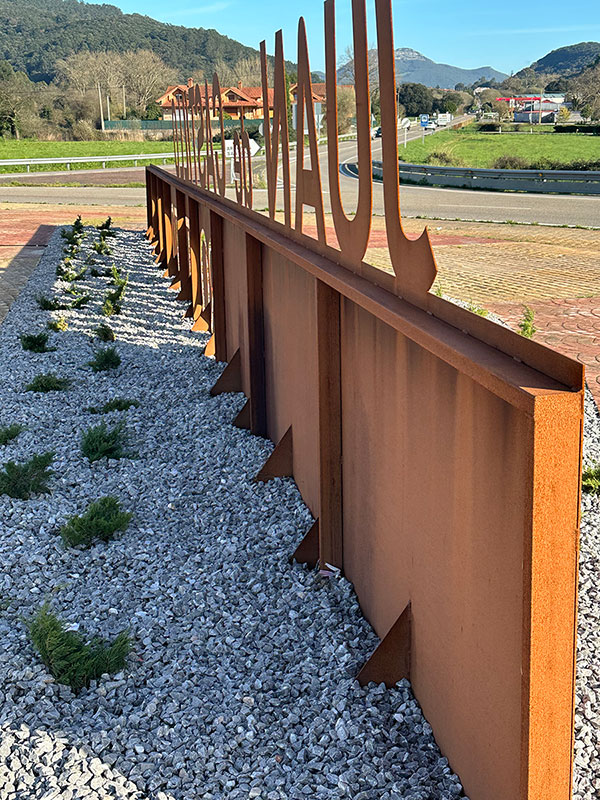

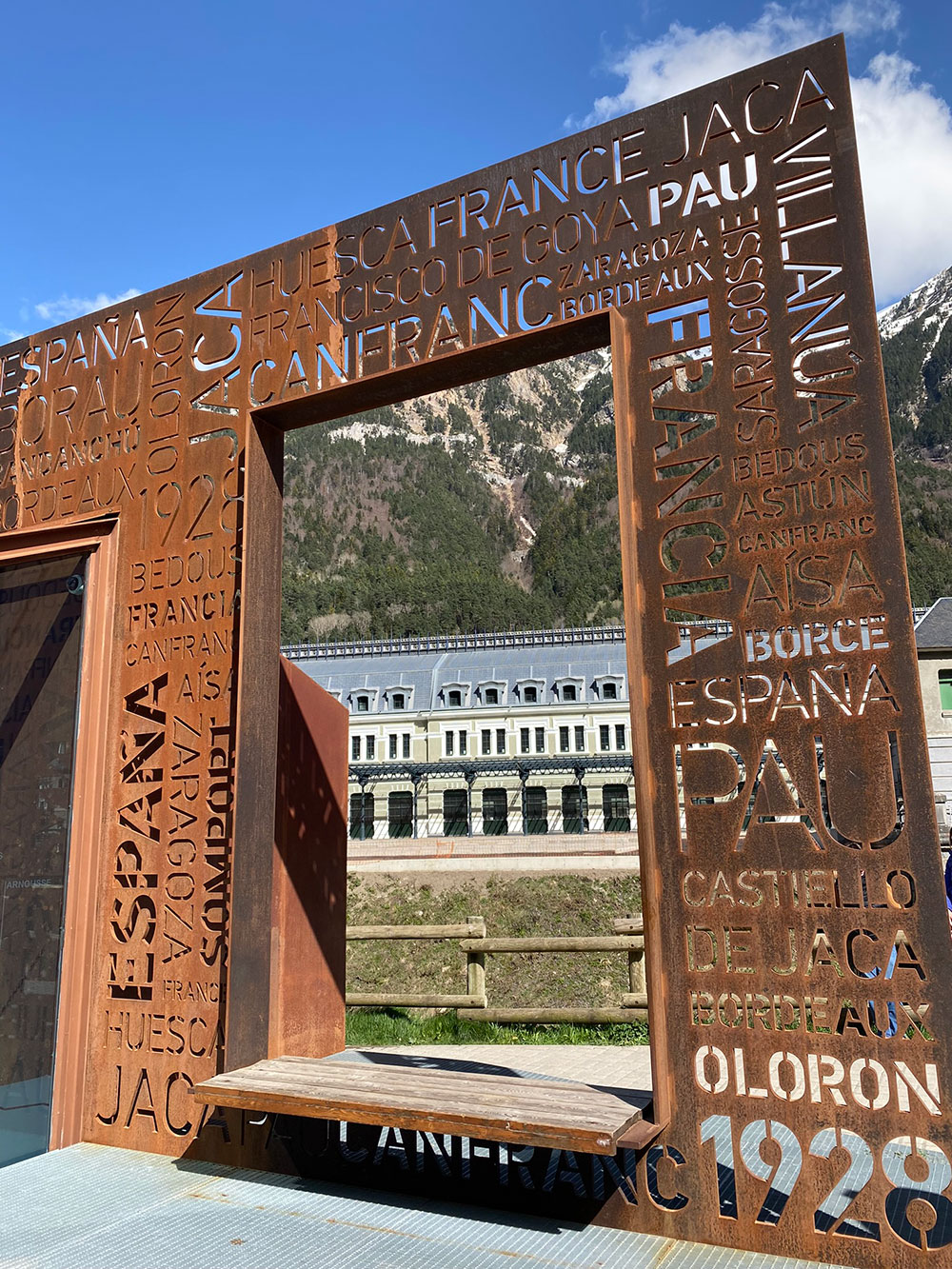

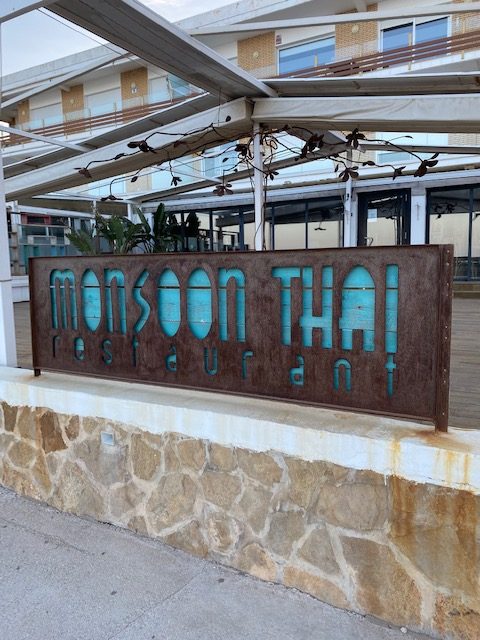

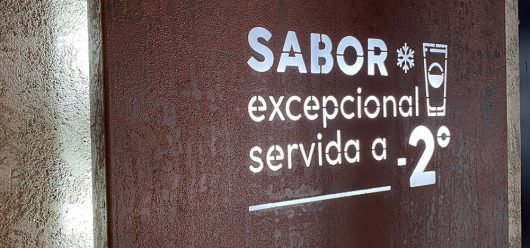

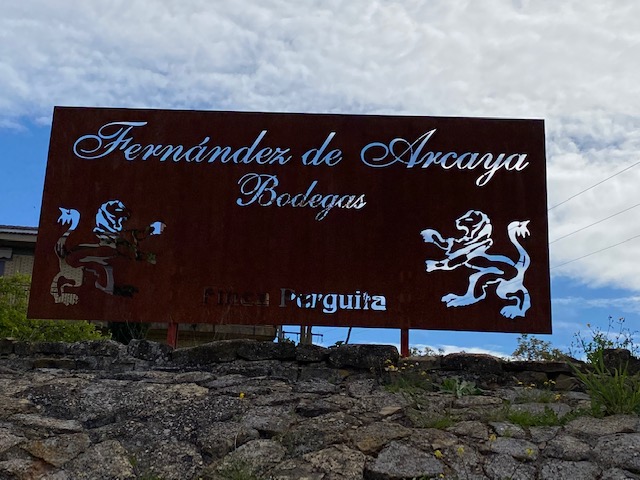

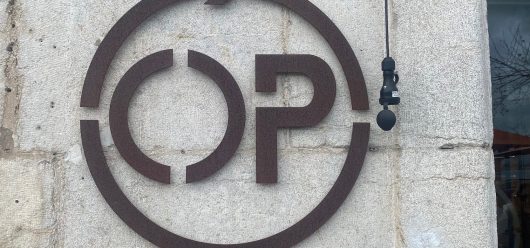

Customized and personalized Corten Steel signs
Parts according to plan, we have a technical department with engineering specialized in responding to any shape, plan or drawing that our clients demand.
High perfomance TECOI machine
MB 6025= until 40mm
Speed: 60mm
Precision 0,1mm
Cutting head: IM7/SAC/SPC
Plasma: HIFOCUS 280i NEO
Software: Lantek
Automatic engraving and marking of pieces
Cut of diverse materials with special gases:
▸ OXYGEN (O)
▸ NITROGEN (N)
▸ ARGON (Ar)
▸ HYDROGEN (H)
▸ FORMINGAS (Gas mixture)
Cut with perfect HD polished finish without burr.
Commitment to deadlines 24/48 hours.
Permanent stock of sheet metal from 1.5 to 40mm immediately available for our customers.
TRAINING ROOM
Training room for salespeople, architects, and clients.
ORDER PROCESS
We receive the order
By email, form or phone call.
We contact the customer
For order confirmation and product clarification.
Material arrival confirmation
We confirm with the customer that the material has arrived in good condition.
Truck loading
We load the material for its destination.
